SATURN 40 V N-Channel Power MOSFETs
SATURN is a family of high-temperature, 40 V N-channel power MOSFETs. The CHT-NMOS4005, CHT-NMOS4010 and CHT-NMOS4020 devices are rated up to 5 A, 10 A and 20 A, respectively.
The family operates from −55°C to +225°C. Compare device-specific drain-current and on-resistance values below, then select a TO-254 or Known Good Die ordering option.

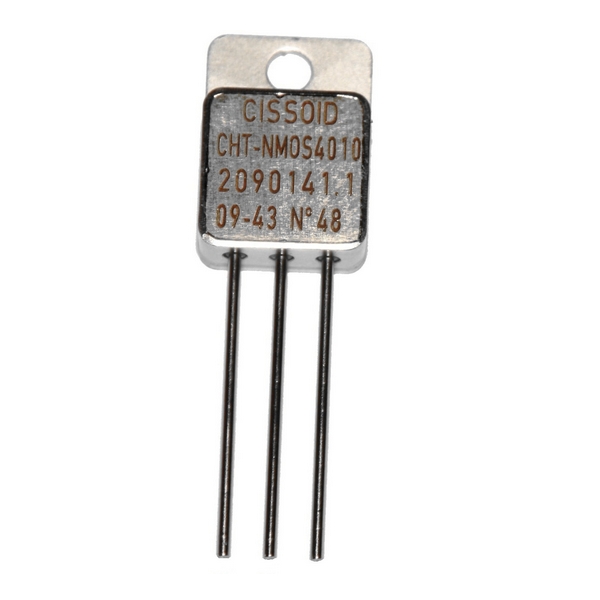

SATURN · TO-254 package
Typical Performance
Review the key characteristics of the SATURN 40 V N-channel power MOSFET family.
- Temperature range
- −55°C to +225°C
- Drain voltage
- Up to 40 V
- Maximum drain current at 225°C
- CHT-NMOS4005: 3.9 A
CHT-NMOS4010: 7.6 A
CHT-NMOS4020: 14 A - On-resistance at 25°C
- CHT-NMOS4005: 0.4 Ω
CHT-NMOS4010: 0.2 Ω
CHT-NMOS4020: 0.12 Ω - Gate-source voltage (VGS)
- −0.5 V to +5.5 V
- Package options
- TO-254 metal package; Known Good Die
Refer to the SATURN datasheet (PDF, opens in a new tab) for test conditions and operating limits.
Ordering Information
Compare the four SATURN ordering options below. Select a part number to search the NAC store.
Manufacturer status: Last Time Buy. View CISSOID product status (new tab) and contact NAC for availability.
Search parts, filter specifications or select a column heading to sort. Scroll sideways for additional columns. Images represent the product family.
| Web Images | Datasheet | ||||
|---|---|---|---|---|---|
| CHT-NMOS4005-TO254-T | | SATURN | TO-254 | CHT-NMOS4005 | |
| CHT-NMOS4010-TO254-T | | SATURN | TO-254 | CHT-NMOS4010 | |
| CHT-NMOS4020-TO254-T | | SATURN | TO-254 | CHT-NMOS4020 | |
| CHT-NMOS40-D-T | No image supplied | SATURN | Known Good Die | Not supplied |
